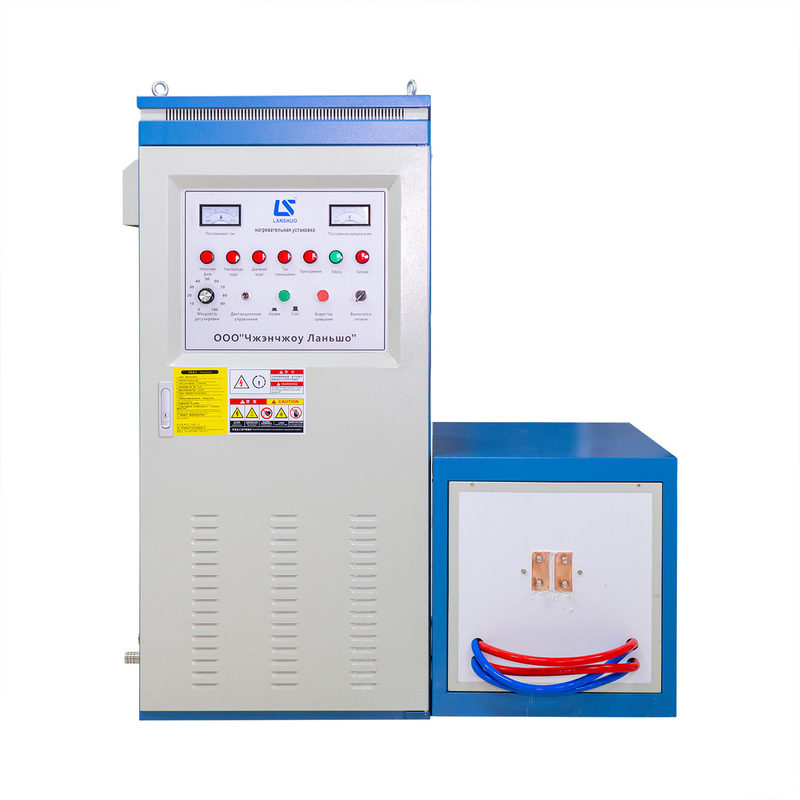

آلة تسخين التعريفي
>
|
| Place of Origin | CHINA |
| اسم العلامة التجارية | ZHENGZHOU LANSHUO |
| إصدار الشهادات | CE |
| Model Number | LSW-80 |
| Parameter | DC current | 130A |
| DC voltage | 500V | |
| Input voltage | Three-phase 380V 50-60HZ | |
| Heating frequency | 18-25KHZ | |
| Air switch | 3*200A | |
| Ground wire | 1mm² | |
| Water pressure | 0.15-0.2MPa | |
| Cooling system | 3m³Water tank or 6T closed cooling water tower | |
| Weight(after packing) | 200kg | |
| Power installation | Input power wire | 50mm²copper wire |
| Input power control switch | 3*200A | |
| Equipment ground wire | 1.5mm²soft copper wire | |
| Cooling water installation | Number of water in the control cabinet |
water intake:one water outlet:one |
| Number of water in the auxiliary engine |
water intake:one water outlet:one |
|
| Water pipe specification | Inlet water pipe: inner diameter 25mm | |
| Water outlet pipe: inner diameter 25mm |
