Small Glass Melting Furnace Induction Melting Furnace

مكان المنشأ	الصين
اسم العلامة التجارية	Lanshuo
إصدار الشهادات	CE
رقم الموديل	آلة انصهار التعريفي LSW-30

تفاصيل المنتج

يكتب:

آلة الصهر التعريفي

الاستخدام:

تسخين ذوبان اللحام النحاس

قدرة الانصهار:

1-5 كجم من الزجاج

القوة المقدرة:

30 كيلو وات

الجهد االكهربى:

380 فولت

جهد المدخلات:

Triphase 380V 50/60 هرتز

العمصر الاساسى:

وحدات IGBT

تردد التذبذب:

25-40 كيلو هرتز

إبراز:

small glass melting furnace,induction melting furnace for glass,compact induction furnace with warranty

induction melting furnace for glass

compact induction furnace with warranty

شروط الدفع والشحن

الحد الأدنى لكمية

1 مجموعة

الأسعار

USD 1500-2000 / set

تفاصيل التغليف

قضية الخشب الرقائقي

وقت التسليم

5-7 أيام عمل بعد استلام الدفعة المقدمة

شروط الدفع

L/C ، D/A ، D/P ، T/T ، Western Union ، Moneygram

القدرة على العرض

3000 مجموعة/مجموعات سنوياً

وصف المنتج

1kg 2kg 3kg 5kg Glass Melting Furnace Industrial Furnace Crucible Furnace

Product Brief Introduction

Our high frequency induction melting furnace adopts IGBT series and parallel induction heating technology as the core. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.

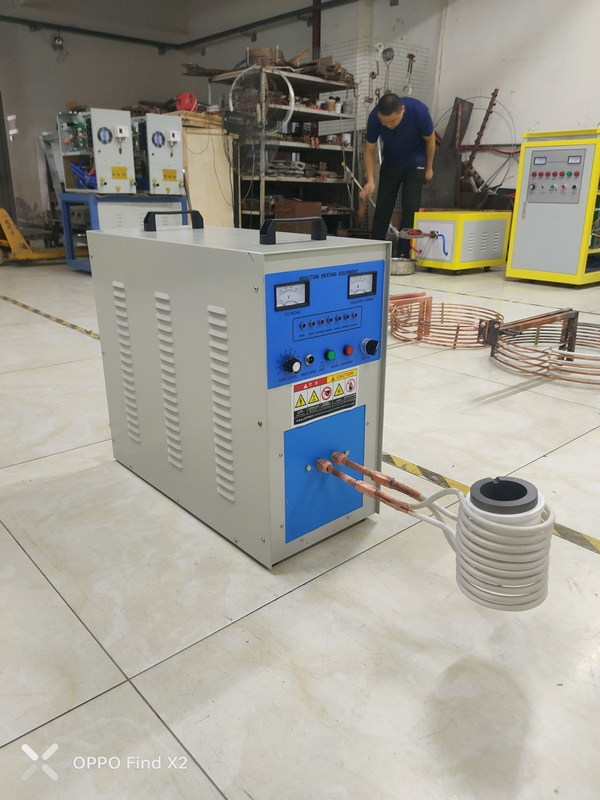

LSW-30 Portable Electric Stainless Steel Induction Melting Machine

Applications

Iron, pig iron, cast iron
glass, glass bottle
Steel, stainless steel, cast steel, carbon steel and bearing steel
Precious metals such as gold and silver
Copper, brass, bronze
Aluminum, aluminum alloy
Zinc, lead, tin, magnesium, nickel, titanium

Product Overview

The LSW series high frequency induction melting furnace adopts IGBT series and parallel induction heating technology as its core. Designed to melt metal into liquid using high temperature, this machine is suitable for smelting various metals including iron, steel, copper, aluminum, zinc, and precious metals.

Technical Parameters

Model	LSW-30KW
Input Power	30KW
Input voltage	Three phase 380v 50hz
Voltage range	340V~420V
Oscillation frequency	25-35Khz
Current(max)	52A
Continuous load rate	100%
Cooling water flow(controller)	25L/Min 0.1mpa
Weight	48kg
Dimension	265600540mm

Key Features

High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
Energy saving: The induction heating machine adopts IGBT from & LC series circuit design, saving energy up to 15%-30%.
Low cost: The heating time is short, significantly reducing metal loss compared to other heating methods.
Easy installation: Following the user manual, even non-professional persons can install the machine easily.
Stable operation: Complete protection system ensures worry-free operation.
Environmentally friendly: Uses electricity, producing minimal waste gas and water.
