| مكان المنشأ | الصين |
| اسم العلامة التجارية | Lanshuo |
| إصدار الشهادات | CE ISO EAC |
| رقم الموديل | LSW-30 |

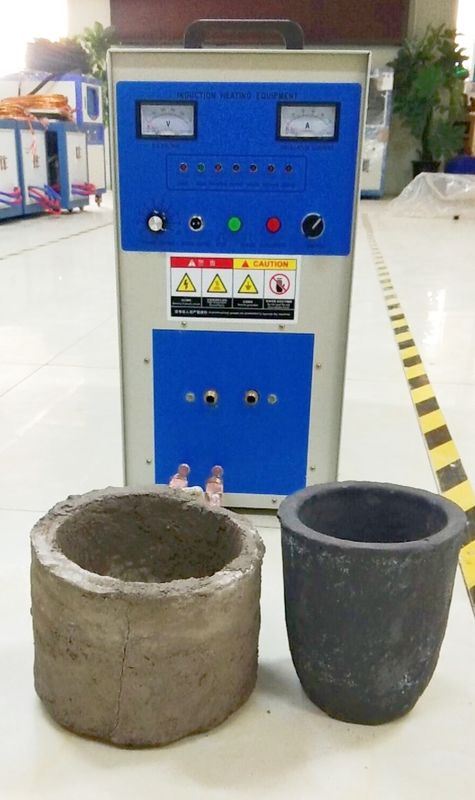

1. Brief Introduction of Induction Melting Furnace:
LSW series induction melting furnace adopts IGBT series and parallel induction heating technology as the core. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.
2. Technical Parameters of LSW-30 Induction Melting Furnace:
| Modle | LSW-30 |
| Melting capacity | 1-5kg copper gold silver iron steel zinc etc. |
| Rated Power | 30KW |
| Input voltage | 3-phase 380v, 50/60hz |
| Oscillation frequency | 25-40Khz |
| Current(max) | 50A |
| continuous load rate | 100% |
| Cooling water flow(controller) | 25L/Min 0.1mpa |
| Gross weight | 60kg |
| Gross dimension | 1250*350*680mm |
3. Main Features of induction heating Melting machine:
(1) High efficiency: Induction power, heat transfers to the crucible in a short time.
(2) Energy saving: Compared with traditional melting ways (gas & oil), saving 20%~30% power.
(3) Easy and safe to use: All-round indicator lights controller, much safer and easier for workers to operate.
(4) Stable in use: Our products have been tested at every level, reducing the rate of failure to a great extent.
(5) Environmentally friendly: Electricity-powered, no air pollution, no dust and little noise.
(6) Easy to carry and install: Portable, saving much more room.
4. Certificates
